Cannot get video if using POE HAT+ #432

New issue

Closed

opened 2026-02-20 13:26:53 -05:00 by deekerman · 2 comments

deekerman commented

2026-02-20 13:26:53 -05:00

Owner

Originally created by @ocalvo on GitHub (Mar 14, 2022).

Originally assigned to: @mdevaev on GitHub.

Describe the bug
When using a HDMI-CSI module and an official raspberry PoE HAT+, the HDMI signal is not detected.

To Reproduce
Steps to reproduce the behavior, like:

Use a Raspberry Pi4, HDMI-CSI module and PoE HAT+
Flash latest release.

Expected behavior
HDMI input can be seem

Screenshots

Desktop (please complete the following information):

OS: [e.g. iOS] Windows 11
Browser [e.g. chrome, safari] Edge
Version [e.g. 22]
VNC client (if used)

PiKVM info:

Raspberry Pi board version [e.g. RPi 4] RPi4
PiKVM platform [e.g. v2-hdmi]
Video capture type [e.g. CSI bridge] CSI bridge
KVMD version: pacman -Q | grep kvmd
kvmd 3.48-1
kvmd-fan 0.1-1
kvmd-oled 0.8-1
kvmd-platform-v2-hdmi-rpi4 3.48-1
kvmd-webterm 0.41-1
uStreamer version: pacman -Q | grep ustreamer
ustreamer 4.9-1
Linux kernel: uname -a
Linux pikvm 5.10.52-13-ARCH #1 SMP Sat Nov 20 09:40:57 MSK 2021 armv7l GNU/Linux

Additional context
Add any other context about the problem here.

Originally created by @ocalvo on GitHub (Mar 14, 2022). Originally assigned to: @mdevaev on GitHub. **Describe the bug** When using a HDMI-CSI module and an official raspberry PoE HAT+, the HDMI signal is not detected. **To Reproduce** Steps to reproduce the behavior, like: 1. Use a Raspberry Pi4, HDMI-CSI module and PoE HAT+ 2. Flash latest release. **Expected behavior** HDMI input can be seem **Screenshots** **Desktop (please complete the following information):** - OS: [e.g. iOS] Windows 11 - Browser [e.g. chrome, safari] Edge - Version [e.g. 22] - VNC client (if used) **PiKVM info:** - Raspberry Pi board version [e.g. RPi 4] RPi4 - PiKVM platform [e.g. v2-hdmi] - Video capture type [e.g. CSI bridge] CSI bridge - KVMD version: `pacman -Q | grep kvmd` kvmd 3.48-1 kvmd-fan 0.1-1 kvmd-oled 0.8-1 kvmd-platform-v2-hdmi-rpi4 3.48-1 kvmd-webterm 0.41-1 - uStreamer version: `pacman -Q | grep ustreamer` ustreamer 4.9-1 - Linux kernel: `uname -a` Linux pikvm 5.10.52-13-ARCH #1 SMP Sat Nov 20 09:40:57 MSK 2021 armv7l GNU/Linux **Additional context** Add any other context about the problem here.

deekerman

2026-02-20 13:26:53 -05:00

closed this issue
added the
resolution:fixed

type:question
labels

deekerman commented

2026-02-20 13:26:55 -05:00

Author

Owner

@ocalvo commented on GitHub (Mar 14, 2022):

Removing the PoE HAT+ and powering via USB-C makes the issue go away.

@ocalvo commented on GitHub (Mar 14, 2022): Removing the PoE HAT+ and powering via USB-C makes the issue go away.

deekerman commented

2026-02-20 13:26:55 -05:00

Author

Owner

@mdevaev commented on GitHub (Mar 14, 2022):

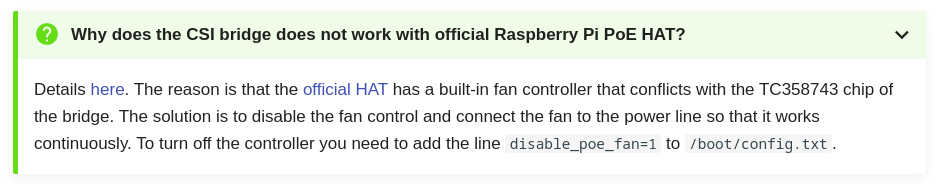

Hello. See here: https://docs.pikvm.org/faq/#video-problems

@mdevaev commented on GitHub (Mar 14, 2022): Hello. See here: https://docs.pikvm.org/faq/#video-problems ![image](https://user-images.githubusercontent.com/416259/158280254-3efe1c4b-8a64-40bd-8a21-b21c0bbbcb72.png)
